Motor Cycle Disinfection System IZ-1000W

HOME > PRODUCT >Motor Cycle Disinfection System IZ-1000W

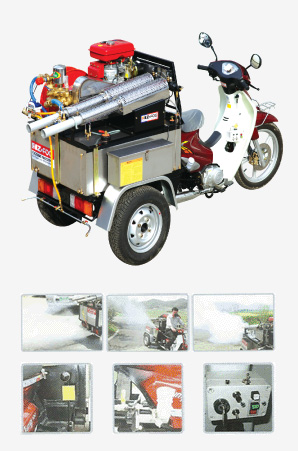

MOTOR CYCLE DISINFECTION SYSTEM IZ-1000W




MAIN SPECIFICATIONS


Motor Cycle ECONOMIC110(110CC)
fuel consumption Rate 1 ℓ /H/30km,3Wheel, Front and Rear gear system,Assistance braking system 100% safety
Spray system
Engine key and Recoil start Common 5.5HP 1,800RPM Maximum 7.5HP, 3,600RPM
Sprayer 80A automatic pressure control pressure 30~80kg/㎠
RPM 800~1,200 Engine power 5HP~7HP
Spray system the ground spray system spray gun
Chemical tank capacity 100ℓ stainless steel tank
Smoke Mist Equipment
Power of operating 18.9kw/25.7hp/16.500kcal/h 2units
Proper voltage DC 12V,(chemical tank capacity:90 ℓ )
Fuel tank capacity 5ℓ X 2
Fuel consumption 1.5ℓ/H X 2
Spouting chemical quantity 20ℓ H(Max 60ℓ H)X2
Cooling system air cooled
Spouting particle size 5~30&Micron(μ);
Size (L):2,550 (W):1,100 (H): 1,300 (mm)
MOTOR CYCLE DISINFECTION SYSTEM IZ-1000W



PRODUCT FEATURES

  1. All formulation controls at operators hand
2. Wide applications
3. High performance
4. Pest control applications
5. It is ideal for treating industrial,public place and residential areas where there are people and high risk for transmitting the virus.


User's Manual



1. MOTOR CYCLE
....1. Turn the starter switch position to on → push the start switch → start
....2. Motor cycle has a manual transmission → low speed, middle speed, high speed and rear move system.
....3. Assistance brake system - brake pedal push down - oil press valve pull the hander.
....4. The driver is required to train for riding  on a three wheels motor cycle. Because the three wheels motor cycle is different to the two wheels motor cycle in balance feeling.
........ 2. SPRAY SYSTEM
....1. Power system
........1) Start motor and recoil start system
........2) The fuel is only gasoline
........3) This machine has rechargable battery - start switch starting.
........4) Long time no use - separate the battery join line.
........5) The engine lube oil must be checked frequently.
....2. Sprayer
........1) Automatic control the pressure.
........2) the pressure blance at 35 - 40 pressure power
........3) The pressure cylinder grease and lube oil must be checked.
....3. Back side spray system opertion
........ control box power on - spray button on - Automatic On , Off valve working - Spray nozzle control valve control.
....4. Spray gun operation
.........The Valve open at the sprayer - Spray gun lever open
....5. Be careful not to close the chemical tank cap air intake hole
3. FOG AND MIST
...Chemical tank : Chemiicl + diesel or water at the rate of rule - 80% of the tank capacity
...Fuel tank : Each tank 80% gasoline of the tank capacity
...Operation : the control box start switch push until starting the engine - chemical open swich on - spraying
...stop : Chemical open switch off - stop the spraying the air valve push on the fuel tank cap -enging stop chemical tank cap
..............open - air presure take out.
4. KEEPING WITH THE AFTER USE
....1. Spray system - Clean the chemical tank, sprayer, Hose, Spray Nozzle
....2. Fog, mist - Empty the chemical tank and fuel tank. Keeping fuel in the fuel tank for a long time can be the cause of no working.
....3. Battery - Keeping with the full charge and sperate with the connection line
